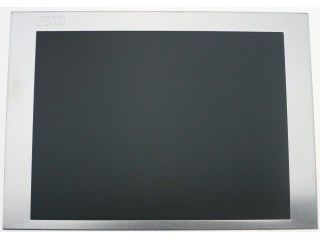

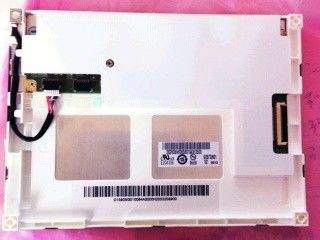

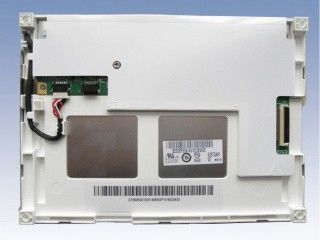

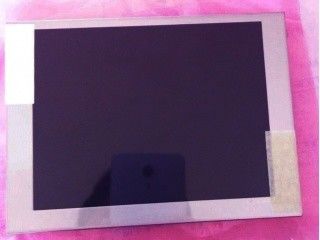

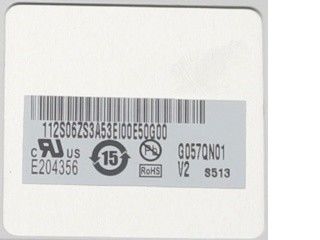

5.7 Inch Hight Brightness LCD Panel G057QN01 V2 With Wide Temperature And LED Driver
1. Main Information:
The G057QN01 V2 (Alias: G057QN01 V.2) is a 5Inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.
With an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Wide Temperature, Hight Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, Matte .
Based on its features, this model be applied to Industrial, Outdoor High Brightness etc.
2. AUO G057QN01 V2 Mechanical Details:
| Pixel Features : |
Resolution |
320(RGB)×240, QVGA |
Dot Pitch(mm) |
0.120×0.360 (H×V) |
| Pixel Format |
RGB Vertical Stripe |
Pixel Pitch(mm) |
0.360×0.360 (H×V) [70PPI] |
| Mechanical Size : |
Active Area(mm) |
115.2(H) × 86.4(V) |
Bezel Area(mm) |
118.2(H) × 89.4(V) |
| Outline Dim.(mm) |
144(H) × 104.6(V) |
Depth(mm) |
12.3/12.8 (Typ./Max.) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
- |
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Rear mounting holes (4-Φ2.6) |
| Other Spec |
Weight |
150/165g (Typ./Max.) |
Treatment |
Antiglare, Hard coating (3H) |
3. AUO G057QN01 V2 Optical Details:
| Basic Information : |
Luminance(cd/m²) |
800 (Typ.) |
Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Viewing Angle |
80/80/70/70 (Typ.)(CR≥10) |
Display Mode |
TN, Normally White, Transmissive |
| Best View on |
12 o'clock |
Response(ms) |
15/10 (Typ.)(Tr/Td) |
| Color Performance |
White Coordinate |
X:0.313; Y:0.329 |
Display Colors |
262K (6-bit) |
| Color Temperature |
6485K |
White Uniformity |
1.30 (Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
49% |
sRGB |
69% coverage |
| Adobe RGB |
52% coverage |
DCI-P3 |
51% coverage |
| Rec.2020 |
37% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance |
Outdoor Visibility |
Sunlight Readable |
Transmissivity |
- |
4. AUO G057QN01 V2 Interface Details:
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
115/130mA (Typ./Max.) |
| Consumption |
0.46/0.51W (Typ./Max.) |
| Signal Type : |
CMOS (1 ch, 6-bit) |
Signal Voltage |
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : |
Position |
- |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Quantity |
Pins |
Pitch |
Pin Configuration |
| STARCONN |
089H33-000100-G2-R |
1 pcs |
33 pins |
0.5 mm |
DRGB-33P1C6B-010A |
